Alu shoe Rocking Support

0/5

Alu shoe Regular & Wedge Rocking Support.

Regular Rocking Support indicate for grade 2 navicular syndrome and Wedge Rocking Support indicate for grade 3,5.
Wide rear support. Rocking & rolling effects.

Available in front 3 clips and hind 2 clips.
The price is for 1 unit. Put  "1" in Quantity for a purchase of 1 shoe, "2" for one pair...

Référence : FMVROCKINGSUPPORTA0
€35.90
€35.90

Extra options

taraudage
Total option price:

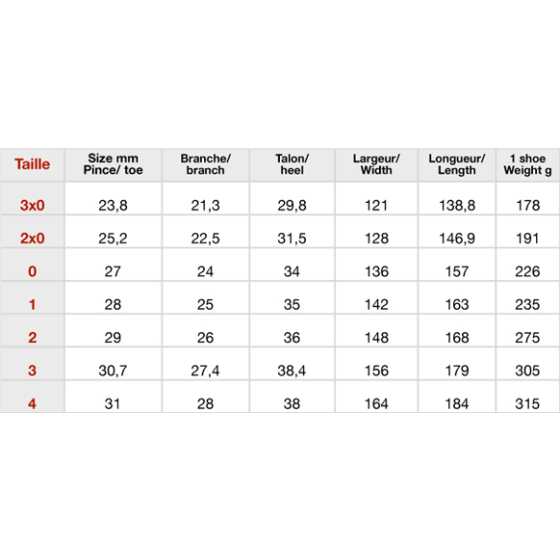

Size
Front/Hind
Pliers
Thickness
En stock
Partager

Partager le lien

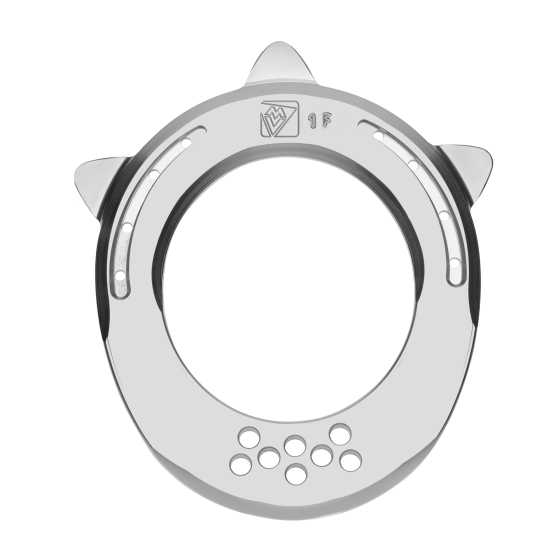

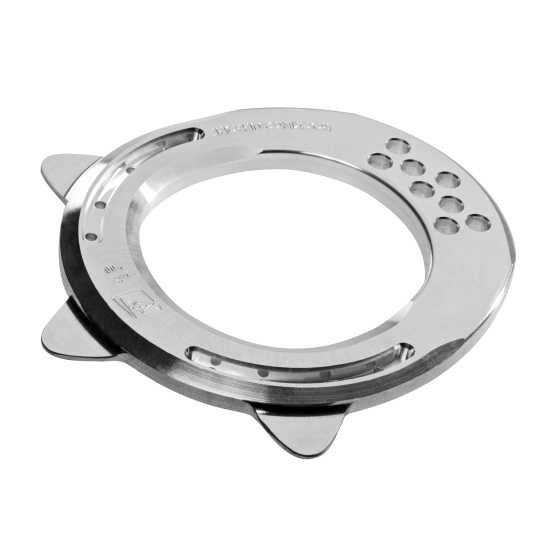

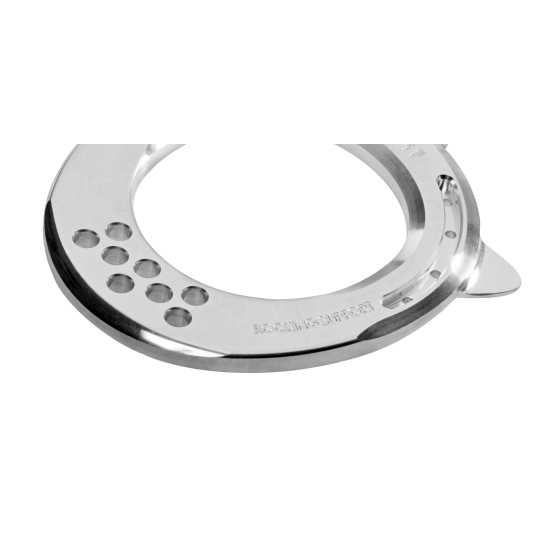

Alu shoe Rocking Support

Front
Egg bar shoe where the rear ground bearing surface surface is behind the heels and frog. Front shape. Made from hi-tech aluminium alloy.
Non-tempered alloy: can be used for risk-free hot shoeing up to 450°C.
3 clips to allow use with option of 1 toe clip or 2 lateral clips. Thickness 10 mm.

Hind
Egg bar shoe where the rear ground bearing surface surface is behind the heels and frog.Rear shape. Made from hi-tech aluminium alloy. Non-tempered grade: can be used for risk-free hot shoeing up to 450°C. 2 lateral clips. Thickness 10 mm.

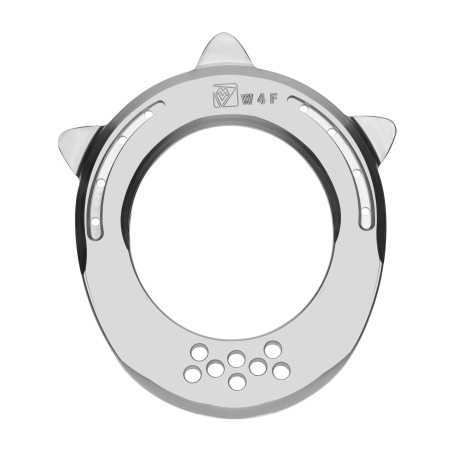

Alu shoe Wedge Rocking Support

Front
Egg bar shoe. 2,55° wedge rear bearing surface beyond the heels and the frog. Front shape. Made from hi-tech aluminium alloy.
Non-tempered alloy : can be used for risk-free hot shoeing up to 450°C.
3 clips for use either with 1 toe clip or 2 lateral clips.
Thickness: 14 mm at rear and 9 mm at toe.

Hind
Egg bar shoe with 2° compensation. Rear ground bearing surface surface behind the heels and frog. Rear shape. Made from hi-tech aluminium alloy.
Non-tempered alloy: can be used for risk-free hot shoeing up to 450°C.
2 lateral clips Thickness: 14 mm at rear and 8 mm at toe.

Alu shoe Rocking Support

Front
Grade 2 navicular syndrome. Lesions of the deep digital flexor tendon or its accessory ligament (distal check ligament).

Hind
Grade 2 navicular syndrome. Deep digital flexor tendon pathologies.
Foot stabilisation during propulsion. Instability of he point of the hock.

Alu shoe Wedge Rocking Support

Podotrochlear syndrome grade 3.5 (between reverse shoe grade 3 and wedge reverse shoe grade 4). Pathology of the deep digital flexor tendon and accessory ligament (distal check ligament).
Wedge shoes should be reserved for old horses and/or at the end of the competition career because they can cause tendons retractions.

PRINCIPLE AND INTERACTION WITH THE GROUND

Alu shoe Rocking Support

Bevelled outer rim at rear to reduce the rear lever arm and limit the ‘snowshoe’ effect during the foot-landing phase.
Large bevel on the outer rim to increase rolling at toe, side walls and quarters.
Wide rear ground bearing surface cross piece to increase support and limit heel penetration on compacted and penetrable grounds.
Pierced cross piece with offset holes to facilitate shoe transformation when a narrower or wider shape is required.

Alu shoe Wedge Rocking Support

Wide rear bearing surface to increase support and limit the sinking of heels into penetrable and compacted ground. Perforated rear support with holes in staggered rows for easy shaping.
Bevel on the outer rim of the rear (rocking) to reduce rear lever arm.
Big bevel on the outer rim to promote rolling of the toe and quarters.
Wedge shoe to raise the heels.

BIOMECHANICAL AND KINETHERAPEUTIC EFFECTS

Alu shoe Rocking Support

Reduces stresses during propulsion in straight lines and turns. Reduces stresses on the distal sesamoid bone and on the deep digital flexor tendon. Reduces general stress on the podotrochlear apparatus.

Alu shoe Wedge Rocking Support

Reduces stresses on the distal sesamoid bone and on the deep digital flexor tendon. Reduces general stress on the podotrochlear apparatus.

Alu shoe Rocking Support

Front
Egg bar shoe where the rear ground bearing surface surface is behind the heels and frog. Front shape. Made from hi-tech aluminium alloy.
Non-tempered alloy: can be used for risk-free hot shoeing up to 450°C.
3 clips to allow use with option of 1 toe clip or 2 lateral clips. Thickness 10 mm.

Hind
Egg bar shoe where the rear ground bearing surface surface is behind the heels and frog.Rear shape. Made from hi-tech aluminium alloy. Non-tempered grade: can be used for risk-free hot shoeing up to 450°C. 2 lateral clips. Thickness 10 mm.

Alu shoe Wedge Rocking Support

Front
Egg bar shoe. 2,55° wedge rear bearing surface beyond the heels and the frog. Front shape. Made from hi-tech aluminium alloy.
Non-tempered alloy : can be used for risk-free hot shoeing up to 450°C.
3 clips for use either with 1 toe clip or 2 lateral clips.
Thickness: 14 mm at rear and 9 mm at toe.

Hind
Egg bar shoe with 2° compensation. Rear ground bearing surface surface behind the heels and frog. Rear shape. Made from hi-tech aluminium alloy.
Non-tempered alloy: can be used for risk-free hot shoeing up to 450°C.
2 lateral clips Thickness: 14 mm at rear and 8 mm at toe.

Alu shoe Rocking Support

Front
Grade 2 navicular syndrome. Lesions of the deep digital flexor tendon or its accessory ligament (distal check ligament).

Hind
Grade 2 navicular syndrome. Deep digital flexor tendon pathologies.
Foot stabilisation during propulsion. Instability of he point of the hock.

Alu shoe Wedge Rocking Support

Podotrochlear syndrome grade 3.5 (between reverse shoe grade 3 and wedge reverse shoe grade 4). Pathology of the deep digital flexor tendon and accessory ligament (distal check ligament).
Wedge shoes should be reserved for old horses and/or at the end of the competition career because they can cause tendons retractions.

PRINCIPLE AND INTERACTION WITH THE GROUND

Alu shoe Rocking Support

Bevelled outer rim at rear to reduce the rear lever arm and limit the ‘snowshoe’ effect during the foot-landing phase.
Large bevel on the outer rim to increase rolling at toe, side walls and quarters.
Wide rear ground bearing surface cross piece to increase support and limit heel penetration on compacted and penetrable grounds.
Pierced cross piece with offset holes to facilitate shoe transformation when a narrower or wider shape is required.

Alu shoe Wedge Rocking Support

Wide rear bearing surface to increase support and limit the sinking of heels into penetrable and compacted ground. Perforated rear support with holes in staggered rows for easy shaping.
Bevel on the outer rim of the rear (rocking) to reduce rear lever arm.
Big bevel on the outer rim to promote rolling of the toe and quarters.
Wedge shoe to raise the heels.

BIOMECHANICAL AND KINETHERAPEUTIC EFFECTS

Alu shoe Rocking Support

Reduces stresses during propulsion in straight lines and turns. Reduces stresses on the distal sesamoid bone and on the deep digital flexor tendon. Reduces general stress on the podotrochlear apparatus.

Alu shoe Wedge Rocking Support

Reduces stresses on the distal sesamoid bone and on the deep digital flexor tendon. Reduces general stress on the podotrochlear apparatus.

Category Physiotherapeutic Brand Michel Vaillant EAN13 3700044708234
