Hood for coal forge with smoke extractor ANGELE

0/5

A-15.2: 1 hotte + extrac G15 / A-30.1: 2 hottes jumelées + extrac G30

Référence : HOTTEANG-A-15.3
€1,750.00
€1,750.00
Declination
Sur commande ou attente de réapprovisionnement
Partager

Partager le lien

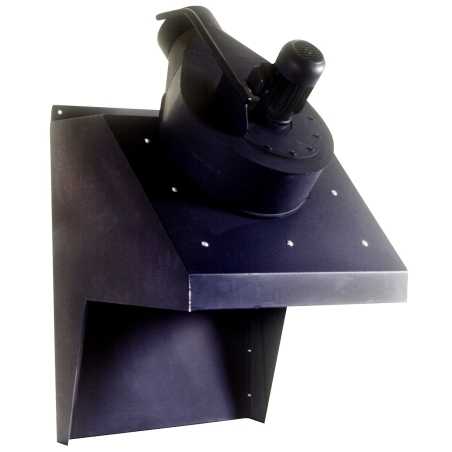

700 mm hood equipped with G-15 smoke extractor, for S800 and S1000 forges.

Dimensions : width 700 mm, depth 700 mm, height 950 mm.
Diameter of the discharge hose 180 mm. Fixing on the forge or on the wall.

Extractor : flow 14 m3/min, pressure 60 Pa, engine 0,12kW, tension 400 Volts three-phase current, noise level 67dB(A), speed 1400 tr/min, weight 50 kg.

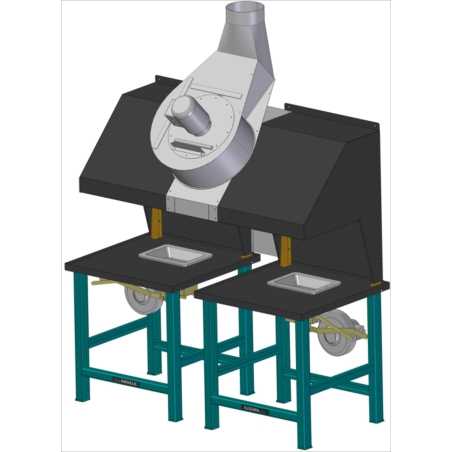

Possibility of installing 2 hoods twinned and connected to a central extractor G-30.

700 mm hood equipped with G-15 smoke extractor, for S800 and S1000 forges.

Dimensions : width 700 mm, depth 700 mm, height 950 mm.
Diameter of the discharge hose 180 mm. Fixing on the forge or on the wall.

Extractor : flow 14 m3/min, pressure 60 Pa, engine 0,12kW, tension 400 Volts three-phase current, noise level 67dB(A), speed 1400 tr/min, weight 50 kg.

Possibility of installing 2 hoods twinned and connected to a central extractor G-30.
