Knife Maker's Backstand MV 2020-1

Precision stationary belt sander specially developed for cutlery, the production of blades, and handles for artisanal knives in all phases, from manufacturing to finishing.

Référence : BACKSTANDCOUTELIERMV2020-1-A
€2,550.00
€2,550.00
Engine power
Voltage
Dimmer
Sur commande ou attente de réapprovisionnement
Partager

Partager le lien

Precision stationary belt sander specially developed for cutlery, the production of blades, and handles for artisanal knives in all phases, from manufacturing to finishing.

Its great versatility makes it the basic machine for the knife maker but it proves to be indispensable in all workshops of mechanics, blacksmiths, or locksmiths, for tasks such as shaping, deburring, finishing, sharpening, regardless of the materials used. It allows progression in the artisanal knife-making process to the professional stage, working on the blade from a material removal (stock removal) standpoint or from forged blanks.

Designed for use with interchangeable abrasive belts measuring 50x2000mm, facilitated by the tension arm's hooking mechanism. The linear speed of the belt reaches a maximum of 30 m/s.

A traditional Backstand requires the use of 10 different abrasive belts.

This Backstand only requires 4:

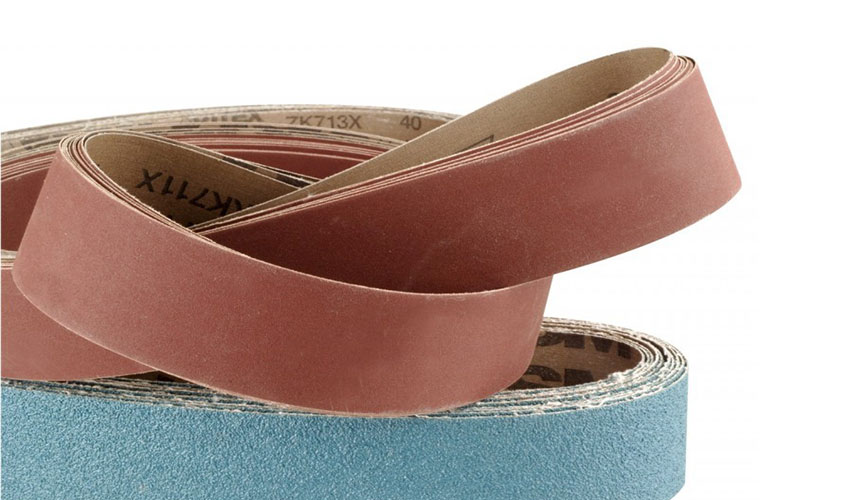

Norton Abrasive Belts:
Grit 36 - Grit X45 - Grit 80 - Grit 180

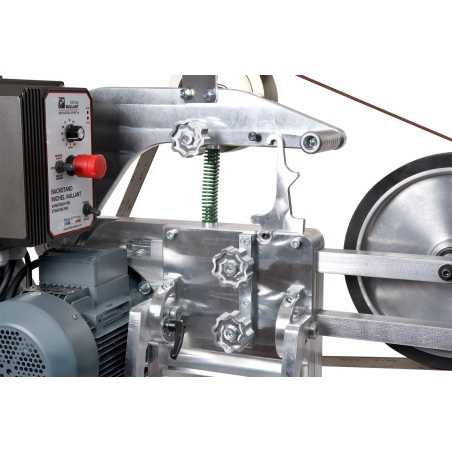

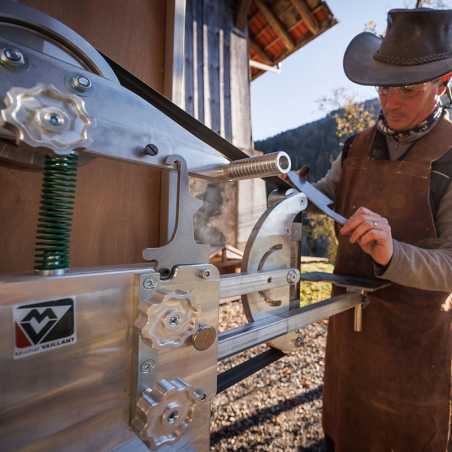

In addition, each wheel or table support arm has an adjustable stop to individually pre-set the desired belt tension for each of these accessories.

Design

Rigid monobloc frame fully machined. Its technical design and aesthetic, along with the quality of components and the choice of a high-damping aluminum alloy, make it a rigid, quiet, and vibration-free machine.

Precision machining ensures perfect alignment and guidance of all fixed or movable elements: motor centering, tension pulley guiding, belt alignment, tension arm hooking, planer table positioning, adjustment of contact wheel arms, blade support system guidance, and hand rests.

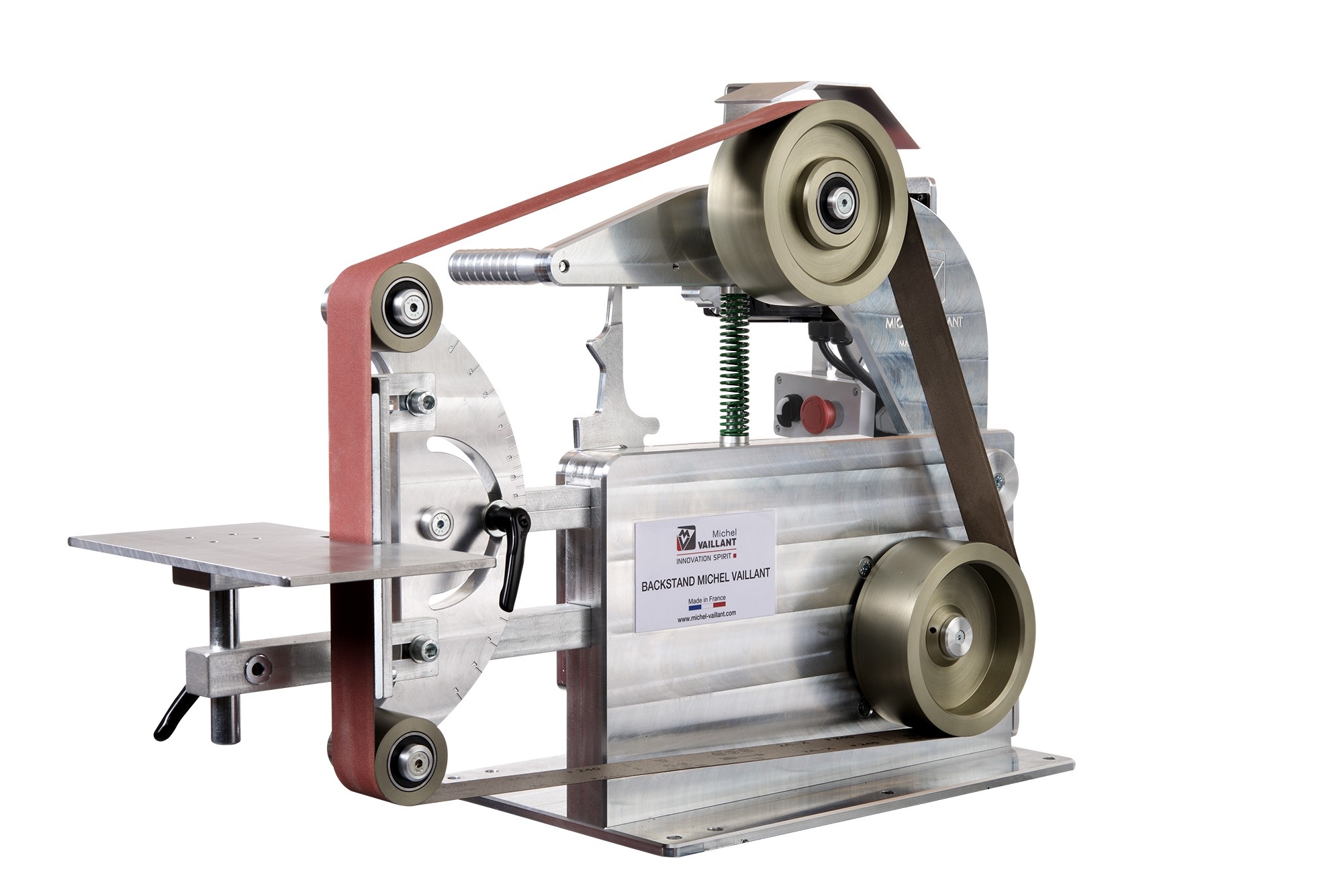

Base Backstand MV 2020-1
Constituent Initial Frame

- Monobloc aluminum chassis, motor support

- Tension pulley system and abrasive belt alignment mounted on high-speed precision bearings. Pre-assembled on the frame

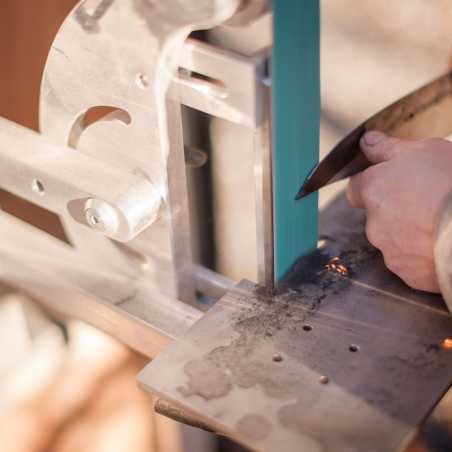

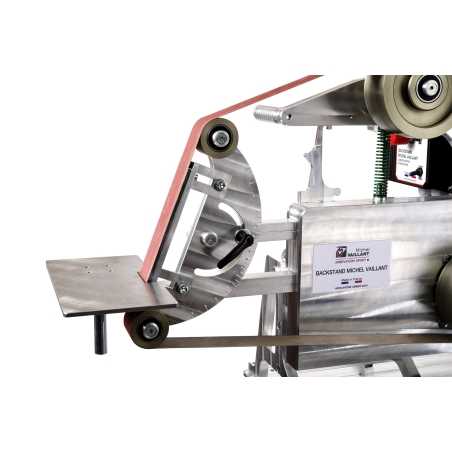

- Planer table with 2 aluminum pulleys (dia 60mm) mounted on high-speed precision bearings (rubber option)

- Interchangeable ground steel belt friction plate, dimensions: 50x210mm

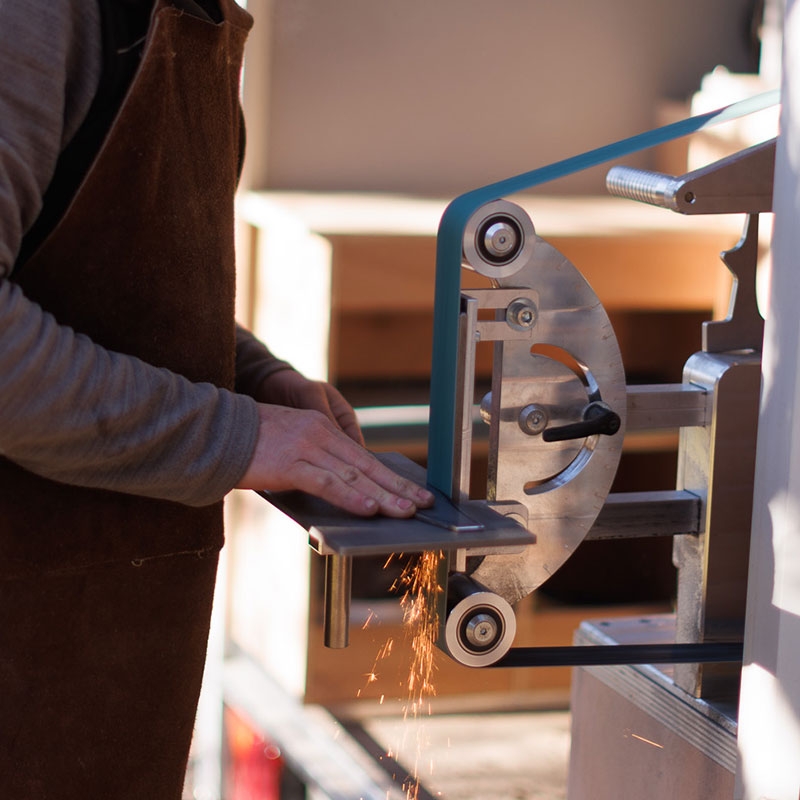

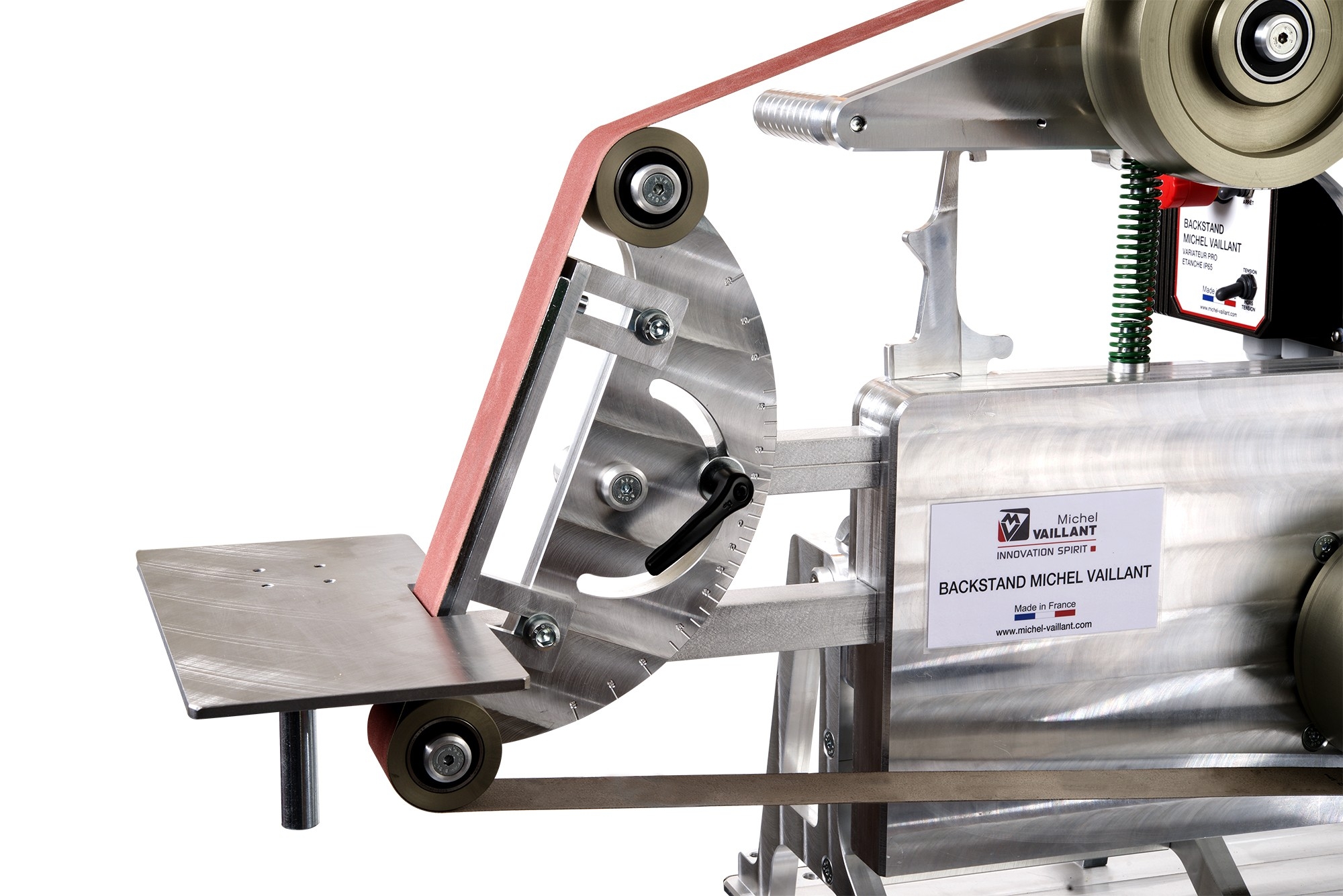

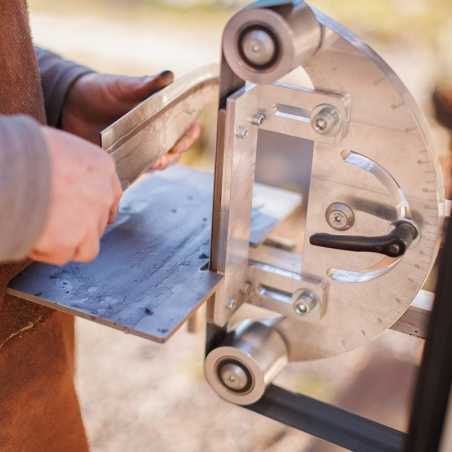

- The planer table is normally oriented in a vertical position at 90°, can tilt up to + or - 90° with graduations every 5 degrees

- Support/hand rest system. Stainless steel support plate, adjustable in height. Support plate dimensions: 280x160mm. Suitable for use on both the planer table and with the contact wheels

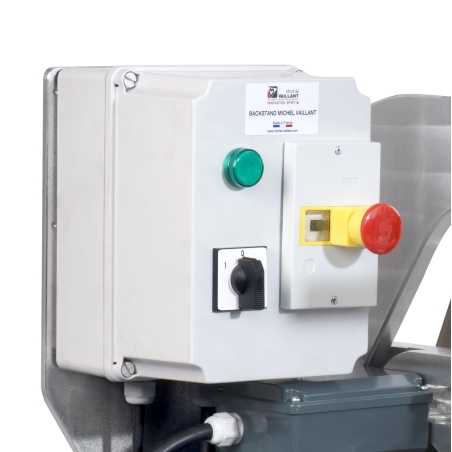

- Front plate on which button enclosures or controllers are fixed at a suitable distance from the operator (a single plate model for any enclosures or controllers)

- Wide base plate fixed under the chassis for a perfectly stabilized machine (designed for both the base version and with the horizontal work tilt system option)

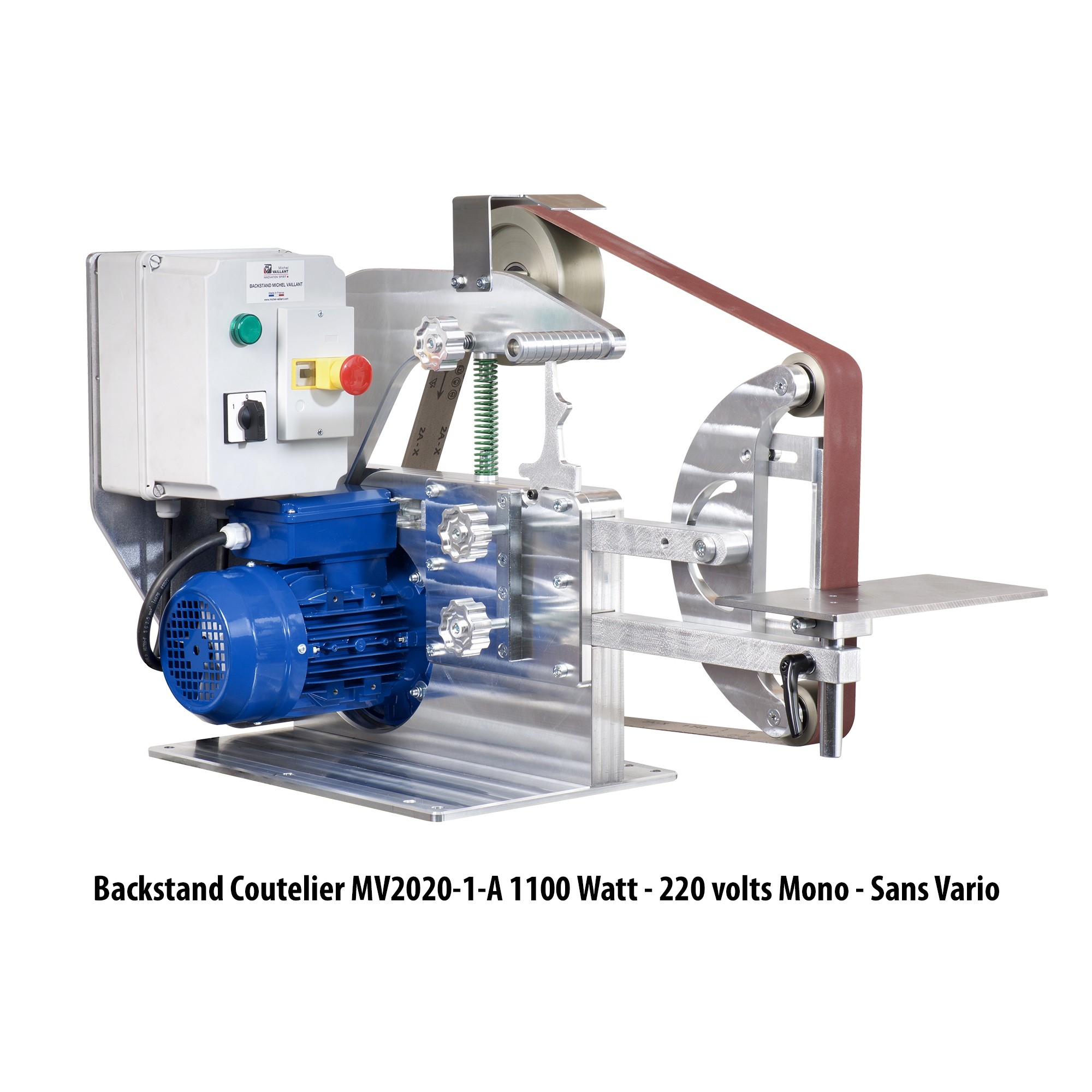

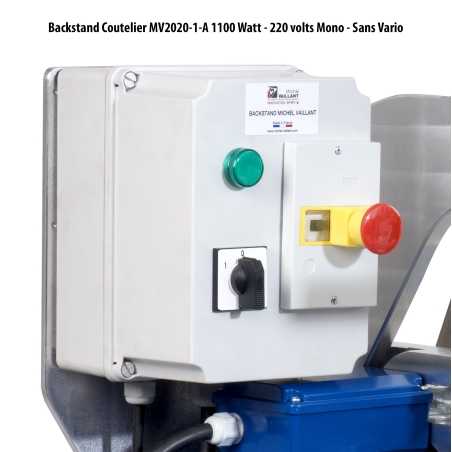

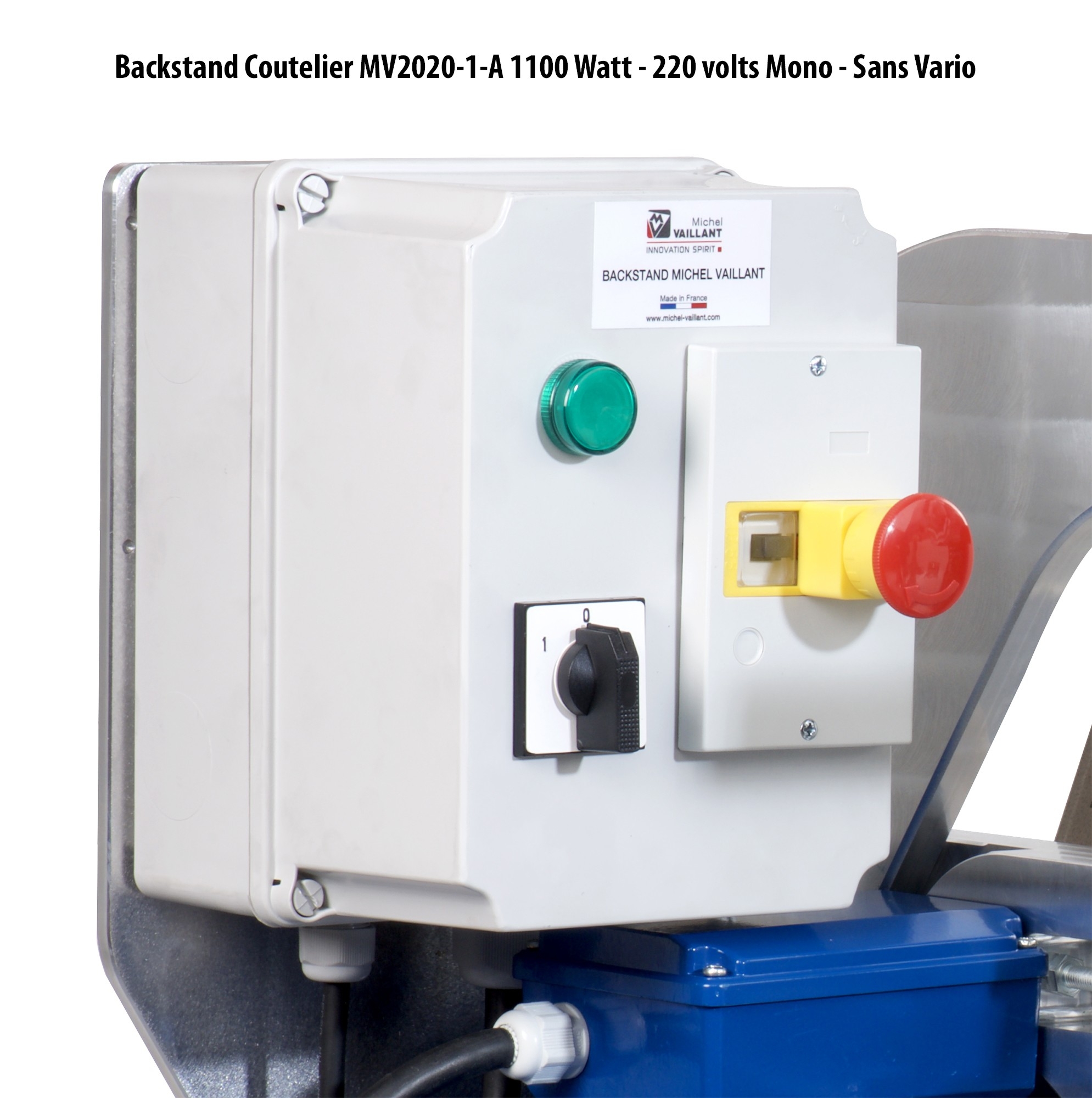

Backstand Coutelier MV2020-1-A
1100 Watt - 220 volts Single Phase - Without Variable Speed Control

Single-phase capacitor motor 220 volts, 3000 rpm, power 1100 Watt. On/Off button, magneto-thermal safety + reverse rotation switch + emergency stop. Motor pulley and keyway adapted Ref. BACKSTANDCOUTELIERMV2020-1-A

Backstand Coutelier MV2020-1-B
1500 Watt - 220 volts Single Phase - Eco Variable Speed Control IP63

Three-phase motor 220 volts, 3000 rpm, power 1500 Watt. To be connected to a 220 volts single-phase outlet with the addition of an Economical type variable speed controller. Speed variation by frequency variation from 20 to 50 Hertz (50Hz = nominal motor speed), reverse rotation, emergency stop safety. Motor pulley and keyway adapted Ref. BACKSTANDCOUTELIERMV2020-1-B

Backstand Coutelier MV2020-1-C
2200 Watt - 220 volts - Vario Pro IP65

Three-phase motor 220 volts, 3000 rpm, power 2200 Watt. To be connected to a 220 volts single-phase outlet with the addition of a Professional type variable speed controller. Speed variation by frequency variation from 20 to 60 Hertz (50Hz = nominal motor speed), reverse rotation, emergency stop safety. Motor pulley and keyway adapted Ref. BACKSTANDCOUTELIERMV2020-1-C

Backstand Coutelier MV2020-1-C/I
2200 Watt - 220 volts - Vario Pro INVERTEK IP66

Configurable by digital touch with lock. Same features as model C Ref. BACKSTANDCOUTELIERMV2020-1-C/I

Backstand Coutelier MV2020-1-D
2200 Watt - 400 volts Three-Phase - Without Variable Speed Control

Three-phase motor 400 volts, 3000 rpm, power 2200 Watt. To be connected to a 400 volts three-phase outlet. On/Off button, magneto-thermal safety + reverse rotation switch + emergency stop. Motor pulley and keyway adapted Ref. BACKSTANDCOUTELIERMV2020-1-D

Backstand Coutelier MV2020-1-E
2200 Watt - 400 volts Three-Phase - Vario Pro400

Three-phase motor 400 volts, 3000 rpm, power 2200 Watt. To be connected to a 400 volts three-phase outlet. Equipped with a Professional 400 type variable speed controller. Speed variation by frequency variation from 20 to 60 Hertz (50Hz = nominal motor speed), reverse rotation, emergency stop safety. Motor pulley and keyway adapted Ref. BACKSTANDCOUTELIERMV2020-1-E

Possible evolution of motorization throughout your career while retaining the same backstand frame. A backstand with a 750 Watt single-phase motor can evolve to the most sophisticated version simply by changing the motor unit + pulley + variable speed controller. Regardless of the initial motor chosen, the chassis is designed to accommodate all types of motors offered without any modification.

Since the control enclosure or variable speed controller can be mounted on the same pre-drilled front plate and designed to independently accommodate all types of button enclosures or variable speed controllers. This allows for transitioning from one version to another based on needs and budget while preserving the initial investment.
