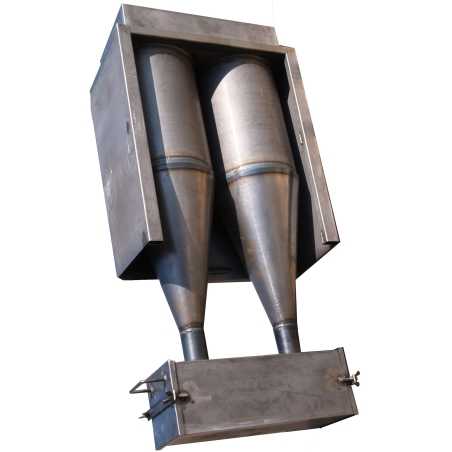

Vertical vacuum-cleaner for forge coal

Soot and dust filter with cyclone effect. To clean the smoke resulting from a coal forge hearth. The particles of ashes and clinker are separated thanks to a centrifugal effect and are recovered in a collector. Thanks to the excellent evacuation of dust, you avoid polluting the environment. Dry functioning : robustness and reliability.

The cyclone is installed between the forge and the chimney. Usually, it is placed beside the forge, but it is possible to place it in a separated room (support in option).

The ventilator can be assembled separately to the wall.

Possibility of mounting a speed regulator in option.

Model with 1 cyclone diameter 500 mm, for forge with 1 hearth :
Flow of the dust extractor : 230g/h
Output : 89%
G-15 Extractor
400V tri - 0,22kW - 0,7Ã - 2800tr/mn
Diameter of exit : 250 mm
Total height : 2,65 m
Volume of the collector : 17 litres
Weight : 85 kg
